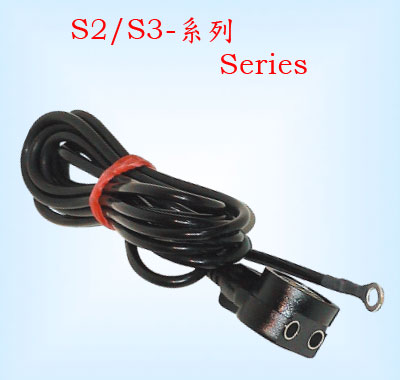

桌墊及腕帶共用接地線


兩人可用同一條線做腕帶接地.扣在
任何10mm
母扣上,桌墊及人員腕帶可以同時接地

* 線徑 : 3.0 mm
* 雙香蕉插及10mm母釦鑄造.
* 有電阻或無電阻皆可選擇
* 線長 : 6ft , 10ft, 15ft
* 另一端可配圓盤端子或香蕉插.

COMMON POINT GROUND
FOR BENCH MATS & WRIST STRAPS

Two workers can use same ground for wrist
straps.
Snap on any 10mm male snap. Molded for
long life.
Ground the mat and workers at the same time.

* Cord Diameter : 3.0 mm
* Two banana jack & 10mm female snap
molded in.
* One meg Ohm or No resistor optional.
* Cord length : 6ft, 10ft, 15ft
* Another end can with
" ring terminal"/ Banana jack.

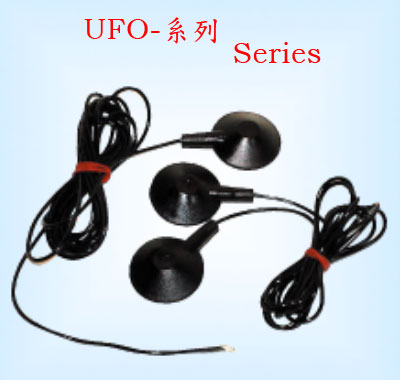

UFO地墊接地線

圓頂蓋鑄造, 減少絆倒
手推車或椅輪滾過不會受阻

* 線徑 : 2.3 mm
* 10mm 母釦鑄造
* 有電阻或無電阻皆可選擇
* 線長 : 6ft, 10 ft, 12ft, 15ft

FLOOR MAT GROUNDING CORD

Molded dome cap, reduces tripping.
Carts or Chair roll over it without getting
snagged.

* Cord Diameter : 2.3 mm
* Molded 10mm Female snap.
* One meg Ohm or No resistor Optional
* cord length : 6ft , 10ft, 12ft,15ft
* Another end can with ring
terminal/banana jack/snap

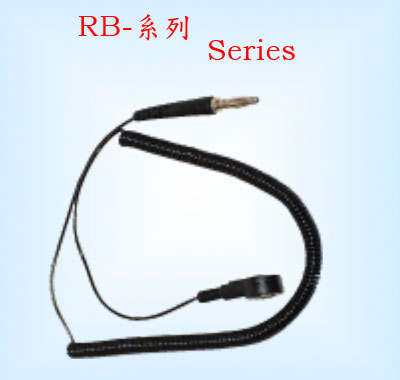

輕細型接地線

* 重量輕,線細 可減低負擔
* 線徑 : 1.5mm
* 線長 : 6ft, 8ft, 10ft, 12ft , 15ft
* 有電阻或無電阻皆可選擇
* 釦子 : 4mm/ 7mm/ 10 mm

LIGHT WEIGHT COIL CORD

* Cord Diameter : 1.5 mm light weight coil
* Cord length : 6ft,8ft,10ft,12ft,15ft
* One meg ohm or No resistor optional
* Snap : 4mm/7mm/10mm

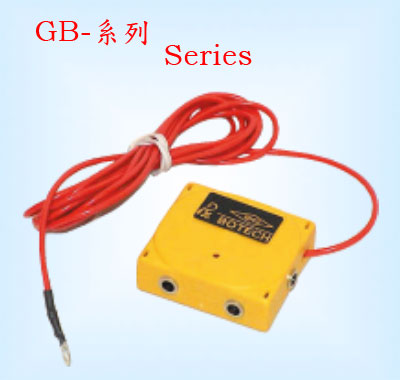

方型多孔共用接地盒

提供2孔或4孔接地點於桌上或下方.
附一螺絲可輕易鎖上,或用雙面膠帶黏上

* 雙孔或四孔.
* 輕巧設計呎吋 : 40 x 35 x 15 mm
* 6呎紅色直線,圓盤端子.
* 有電阻或無電阻皆可選擇
* 顏色 : 黃色 / 酒紅色 / 水藍色

QUAD COMMON POINT GROUND

Provides two or four grounding point under or
above of the bench.
One screw holes for easy attachment.
or with the reversible tape to stick on or under
the workbench.

* Four or Two banana jack optional.
* Compact design Size : 40 x 35 x 15 mm
* 6ft red straight cord with ring terminal.
* One meg ohm or No resistor optional
* Color : Yellow/Maroon/ Light blue

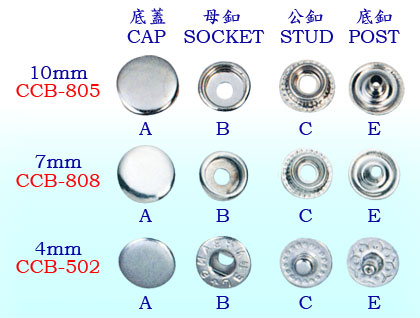

PRESS SNAP FASTENER
釘 釦 組 合 系 列

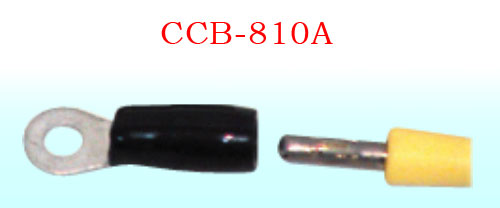

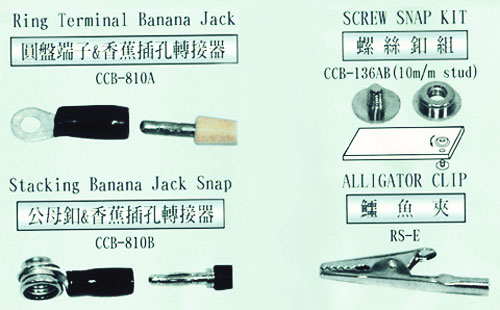

  Ring Terminal Banana Jack
圓盤端子 & 香蕉插孔轉接器
  SCREW SNAP KIT
螺 絲 釦 組

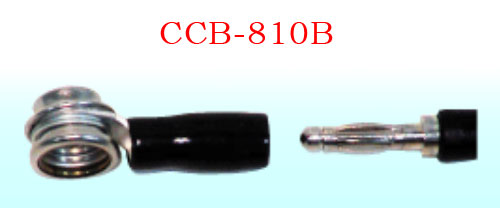

Stacking Banana Jack Snap
公母釦 & 香蕉插孔轉接器

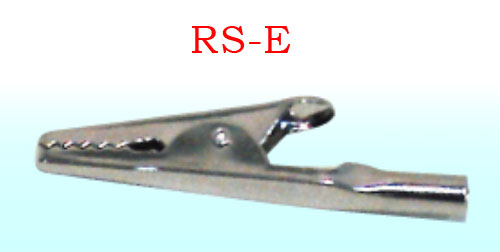

ALLIGATOR CLIP
鱷 魚 夾
