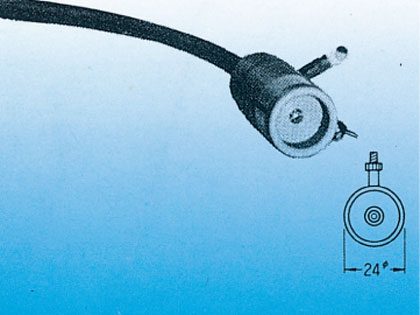

AG2 靜電消除噴頭
Static Eliminator Air Nozzle

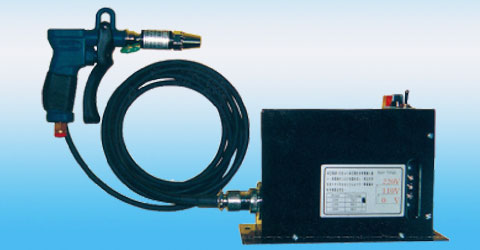

  AG3 靜電消除槍 / 主機
Electrostatic Eliminating Gun /Transformer

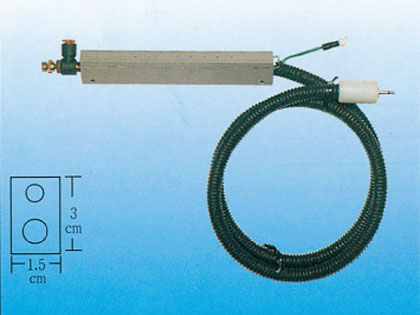

  CH- 靜電消除棒
Static Eliminator Ion Bars

* 特 性 :
(1). 利用強力壓縮離子化空氣將灰塵吹去,
      同時消除靜電。
(2). 離子化空氣瞬間消除較長距離物的靜電。
* 用 途 :
運用於除去附著在製品上之塵埃
1. 印刷前的(製品塑膠膜)中
2. 印刷機送紙出紙部份
3. 精密零件裝配
4. 塑膠製品塗裝
* Characteristics :
1. It uses powerful compressed and ionized air
    air to blow away dust and shed away static.
2. Uses ionized air quickly eliminate long
    distance static.
* Application :
It best for blowing away dust that attaches to the
products.
1. Printing machine.
2. Paper feeder and outlets.
3. For sophisticated assemblies.
4. Plastic molding and complex shapes products.
主機型號
model
功 率
Consumption
輸入電壓
Input
輸出電壓
Output
尺 寸
Size (cm)
重 量
Weight
適用
application
CH-7N 20W 110v / 220v 7kv 22.5x10.5x14 6kgs 槍/ 噴頭 Gun & nozzle
CH-8N 25W 110v / 220v 8kv 22.5x10.5x14 6kgs 消除棒 Eliminate Bar
CH-9N 30W 110v / 220v 9kv 22.5x10.5x14 6kgs 消除棒 Eliminate Bar

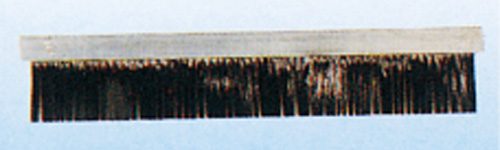

自行放電式靜電消除器 Self Discharge Static Remover
* 特 性 :
(1). 採用半導體極細炭素纖維尖端自行放電式除電,可免接電源。
(2). 防爆性, 耐高溫, 耐熱, 彈性佳。
(3). 耐酸性, 耐久性, 抗張強度高。
(4). 任何用途'尺寸'規格'形狀'均可訂做。
(5). 電極尖端附著塵埃時,可用火焰燃燒去除灰塵即可。
* 用 途 :
訂合,影印,電腦選別,傳真等事務機器. 粗粒,粉末,組立等工程.
挑紙,銅板前後,印刷,裝訂切紙工程.

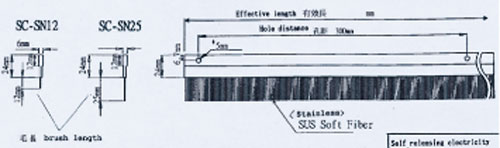

[ 有效長度 ] 依客戶指定
SC-12 毛長 fiber length 12 cm
SC-25 毛長 fiber length 25 cm

* Characteristics :
1. Uses semi-conducting carbon fiber, self releasing electricity To eliminate static, no electric required
    to start.
2. Prevent explosion, heat resistant, good flexibility
3. Acidity resistant, durability, high tensile straight
4. Customized size ,shape available.
5. The dust attached to the tip- just by burning the dust away.
* Application :
Gluing, printing, photo copying, computer hardware, fax machines. Works for granule, powder, molding,
assembling. Also great for cutting , packaging, printing bronze boards and printing related works.

[ available size ] As per customized

靜電消除離子風扇 Static Eliminator Air Ion Blower
用途特性 :
工作台, 電子配件組裝, 光學鏡片, 包裝, 射出
成型 塗裝前後, 膠片捲取, 光電, PVC, PE, 保
麗龍, 印刷 加工各種材質上之靜電均可消除.。
Application :
For Work Bench, Electric assemble, Optics
Package, Injection molding, Painting before
& after,Optelectronic, PVC, PE, Polylon,
Printing, The static Of processing various
material can be eliminated.
型號
Model No
功 率
Consumption
輸出電壓
Output
輸入電壓
Input
重 量
Weight
全開風量
Air flower
尺 寸
Size (cm)

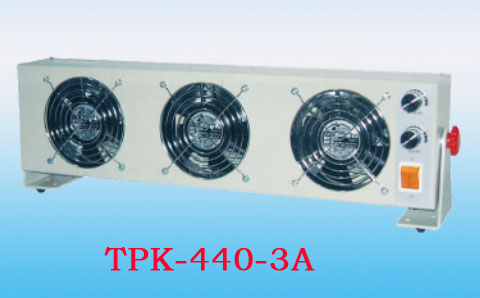

TPK-440-3A 60W 6 ~ 9kv 110v / 220v 2.3 kgs 9m3 / min. 58 x 11 x 17

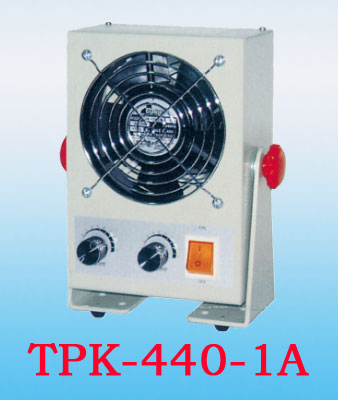

TPK-440-1A 25W 6 ~ 9kv 110v / 220v 2.3 kgs 3m3 / min. 18 x 11 x 23
