Toro El is a pressed, homogeneous, conductive resilient flooring with 3rd generation PUR for excellent wear
resistance and cleaning characteristics. The advanced conductive properties are achieved by carbon-black
particles running straight through the product, and a pure carbon backing. Rolls are installed with standard
flooring adhesive. Tiles and copper strips always require conductive adhesive.
The patent pending conductive
PUR, invented by Tarkett, and the row material composition give Toro EL the strong advantages of our iQ
floorings during its lifetime. Toro EL has a non-directional design available in nine colors. The range is color
coordinated with other resilient flooring from Tarkett. |
| |
|
| |
* Toro EL 無縫地板特色 :
- 垂直式導電系統 -高導電品質與絕佳的穩定性
- 永久性導電
- PUR 免打臘系統
- 清潔成本低,不須使用導電臘
- 耐久性 - 耐磨,耐水耐化學藥品
- 同質透心的材料和持久顏色
|
* Features Of Tarkett Toro EL flooring :
- Vertical Conductive system -High conductivity
quality and excellent stability.
- Permanent conductivity.
- PUR no wax system.
- Low maintain cost, no conductive wax require.
- Durability : Excellent anti-wear, anti-water, and
anti-chemical properties.
- Homogeneous material and color maintenance.
|
| |
* 用 途 :
- 半導體工廠之製造、組裝、檢驗場所。
- 電子工廠之生產、組裝、實驗及測試場所。
- 放置爆裂物或易燃物之場所。
- 電信公司 (機房)。
- 醫院手術房。
- 無塵室、電腦室、資料室。
|
* Application :
- Manufacturing, assembling and inspection factory
of semi-conductor company.
- Producting, assembling, laboratory, and test place
of electronic product.
- Place to handle explosives and flammable gas.
- Telecommunication corporation
(electronic switching room, etc.)
- Operation room of hospital.
- Clean room, computer room , Access floor.
|
| |
| 規格技術說明 TECHNICAL SPECIFICATION |
| Technical data |
TORO EL |
Technical data |
TORO EL |
Type of floor covering
EN 649 |
Conductive, homogeneous
Pressed vinyl flooring |
Electrical resistance ESD:S7:1
ESD-approval. SP-method 2472
EN 1081
IEC 61340-4-1 |
R ≦ 10e6 Ohm
R ≦ 10e8 Ohm
R1/R2 ≦ 10e6 Ohm
R ≦ 10e6 Ohm |
| Classification EN 685 |
Commercial: 34
Industrial: 43 |
Wear layer thickness
EN 429 |
2. 0 mm |
Thermal resistance DIN 52612 |
0.008 m2 |
| Polyurethane reinforced |
Yes |
Light fastness EN ISO 105-B02 |
≧ Level 6 |
| Total Thickness EN 428 |
2. 0 mm |
Chemical resistance EN423 |
Good resistance |
Total Weight /m2
EN 430 |
Approx. 3.0 kg |
Fungi and DIN EN ISO 846-A/C
Bacteria resistance |
Does no favour growth |
Dimensional stability
EN 434 |
≦ 0.4 % |
Abrasion:Volume loss
EN 660:Part 2 |
Group P: ≦4.0mm3 |
Slip resistance DIN 51130
EN 13893 |
R9
≧ 0.3 |
Residual indentation
EN 433 |
Approx. 0.03 mm |
Castors wheel test
EN 425 |
Suitable |
Reaction to fire EN ISO 13501-1
EN ISO 9239-1
EN ISO 11925-2 |
Class Bft S1
≧ 8 Kw/ m2
Pass |
| Underfloor heating |
Suitable - max. 27°C |
Electrical insulation
VDE0100, Part 600 |
Rj ≦5 x 10e4 Ohm |
Static electrical charge
EN 1815 |
< 2 KV |
Roll Size 整捲尺寸 |
2mm x 2M x 23M=46 m2 |
Impact Sound reduction
EN ISO 717/2 |
Approx. + 4 dB |
Tile Size 地磚尺寸 |
610 x 610 mm |
|
| |

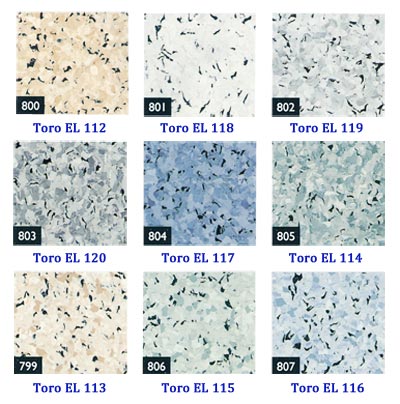

| ★ 產 品 色 樣 Sample color : |
|
◎ 材料 / 性能規範 :
- 材 質 : 本材料為同質全透心地板,PVC含量70%以上,360°不斷
裂,不碎化,色紋表裡一致,不含石綿,並通過DIN 16951
標準生產
ISO9001認證.
- 耐 磨 級 數 : K5
- 磨 損 度 : 符合DIN 51963 < 0.15mm
- 殘 餘 壓 凹 : 符合EN 433 Approx. 0.03 mm
- 腳 輪 耐 磨 : 符合 DIN 54324 適用
- 表 面 加 強 : Polyurethane (PUR)
- 材 料 密 度 : 1550 kg / m3
- 耐化學藥品性 : 符合 DIN 51958 全抗
- 防 火 性 : 符合 DIN 4102 B1 一級防火符合內政部室內地坪
防焰材料通過ISO 9001 國際品質認證.
|
| Item no. Toro EL |
Welding rob No. |
| EP-799 ( 113 ) |
32923196 |
| EP-800 ( 112 ) |
32924656 |
| EP-801 ( 118 ) |
32928016 |
| EP-802 ( 119 ) |
32918116 |
| EP-803 ( 120 ) |
32919686 |
| EP-804 ( 117 ) |
32881586 |
| EP-805 ( 114 ) |
32884096 |
| EP-806 ( 115 ) |
32918066 |
| EP-807 ( 116 ) |
32881706 |
|
|
| |
|
|
|
